G003 Area Sound & Light Alarm - Shenzhen Nuoan technology Co., Ltd

Main Product

Standard Components

Batch Components

G003

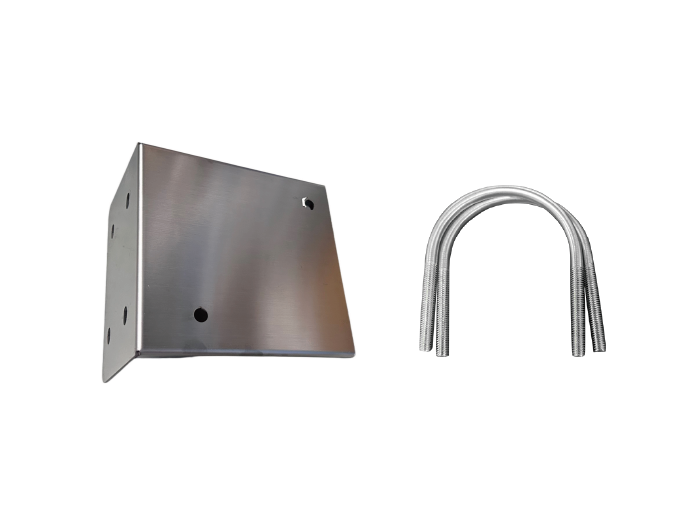

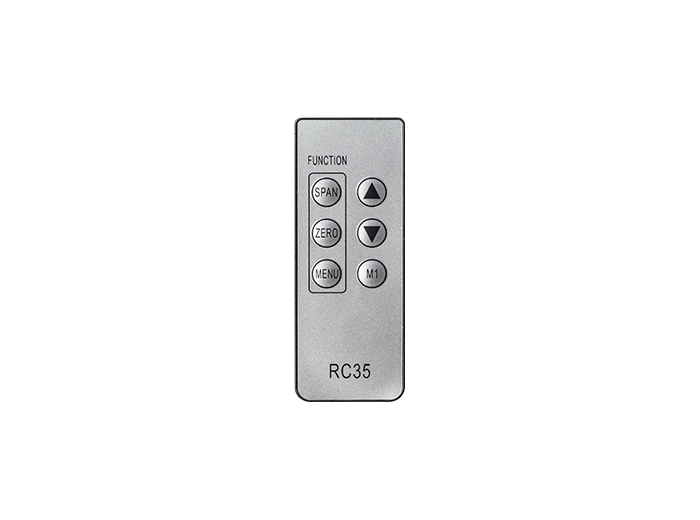

Product Accessories

Examples of Gas Detection：

Depend on gas detector

Click for the full list of detectable gases.

Simplified Manual

Download

Quality Assurance & Certifications

Technical Parameter

Technical Specifications	Parameter Details
Power Supply	26VDC
Current	≤330mA(24V DC)
Power Consumption	≤8W
Light Color	Red (optional: yellow, blue, green)
Light Display	High-brightness LED, with optional rotating or flashing display
Flashing Frequency	75/90/135/180/minutes
Alarm Sound Level	Sound intensity: 110dB~120dB@100cm
Alarm Tone	≥10
Explosion Protection Rating	Ex db ib llC T6 Gb Ex tb ib lllC T80°C Db
Ingress Protection (IP) Rating	IP66
Electrical Interface	NPT3/4″ (F) x2 (Available in various sizes as required)
Ambient Temperature	-40℃~60℃
Relative Humidity	0～99% RH/No condensation
Dimensions	(187x210x164)mm(WxHxD)
Housing Material	Aluminum alloy/SS316
Lens Material	Imported PC+Tempered Glass
Mounting Method	Ceiling-mounted, suspension rod, pipe-mounted, flat
Weight	3,076g (aluminum alloy housing), 5,730g (SS316 housing)

Product Features

– High-decibel sound alarm (up to 120dB)

– Alarm sound type adjustable

– High-brightness light alarm with low power consumption

– The flashing frequency of the lights is optional

– Light color options

– High-brightness LED light source with long service life

– Aluminum alloy/stainless steel housing with impact-resistant lampshade

– Explosion-proof and intrinsically safe design with IP66 protection rating

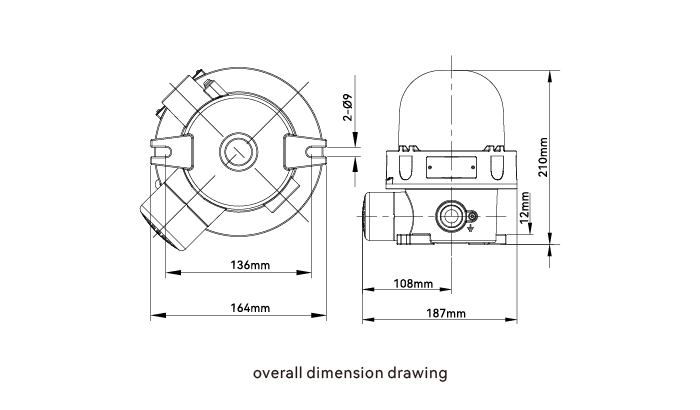

Structure & Dimension Diagram

Detectable Gases

Depend on gas detector

Paid Components

Rain cover

Video

Sample Video
