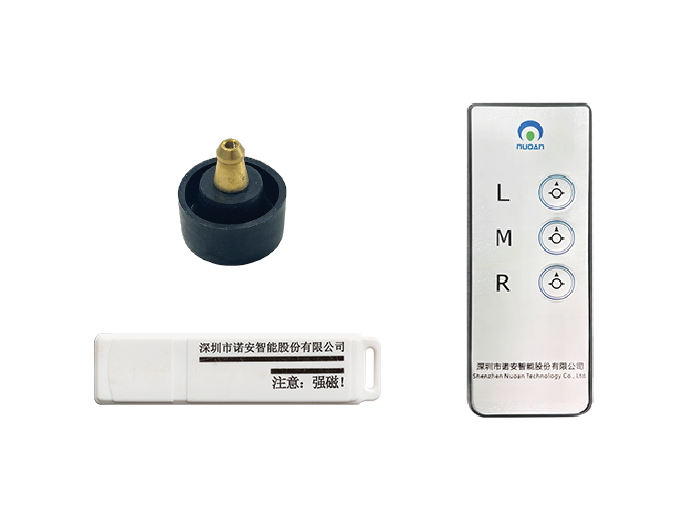

Batch Components

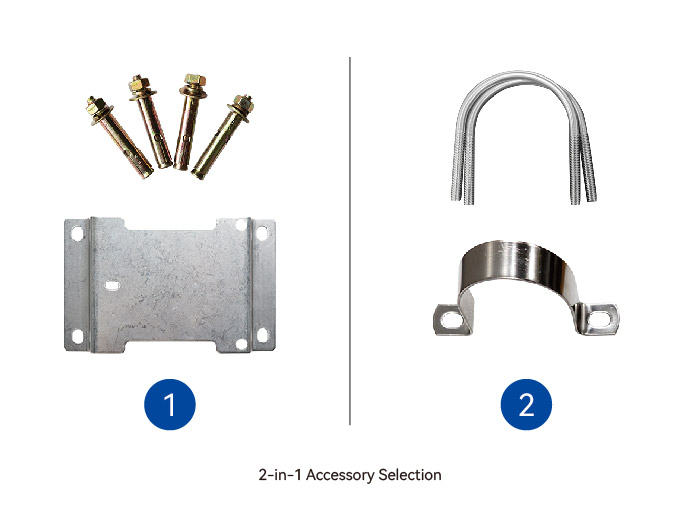

Standard Components

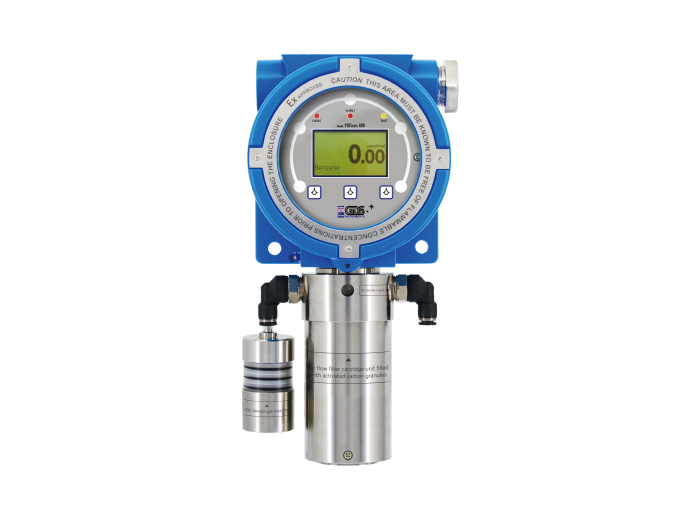

PIDScan800

Fixed-type Pid VOCs Detector

Examples of Gas Detection：

Benzene
Xylene
Butadiene
Biphenyl
Carbon disulfide

Gasoline
Ethyl acetate
Diesel fuel
Kerosene
etc.

Click for the full list of detectable gases.

Simplified Manual

Download

Quality Assurance & Certifications

Technical Parameter

Technical Specifications	Parameter Details
Target Gas	Toxic volatile organic compounds, such as benzene, toluene, aniline, butadiene, etc. Low-volatility organic compounds, such as ketones, alcohols, chlorobenzene, kerosene, diesel, etc.
Detection Principle	photoionization (PID)
Detection Method	Built-in pump suction type (with self-diagnosis function supported)
Repeatability	＜2%
Response Time	T90<15s
Display Mode	Dot-matrix LCD display, Chinese menu, LED indication
Alarm Mode	LED optical alarm, optional explosion-proof audible and visual alarm (optional purchase)
Adjustment Method	Infrared remote control, magnetic wand
Power Supply	24V DC(15V~32V DC)
Power Consumption	≤3W (≤5W with explosion-proof audible and visual alarm)
Output Signal	4~20mA (three-wire) 4~20mA+HART (optional) RS485 Modbus (four-wire) Three groups relay switch output (2A 30V DC) 24V DC output (drive audible and visual alarm) 4G/5G/NB-IoT/LORA wireless communication transmission (optional)
Transmission Cable	≤1000m，3(4)x1.5mm2，≤1500m，3(4)x2.5mm2
Electrical Interface	Two interfaces,NPT3/4″(F)，M25x1.5
Ambient Temperature	-40℃～+70℃
Relative Humidity	0～99% RH/No condensation
Sensor Lifetime	≥1.5年 ≥1.5years
Explosion Protection Rating	Ex db llC T6 Gb Ex tb lllC T80°C Db
Ingress Protection (IP) Rating	IP66
Enclosure Material	Aluminum alloy/SS316
Dimensions	(133x265x123)mm(WxHxD)
Weight	3,500g (aluminum alloy), 4,577g (SS316)

Product Features

– New-generation nano-ceramic tube DC discharge photoionization detection technology, high precision, long service life

– Built-in vacuum diaphragm air pump, suction-type detection, fast response and recovery time

– Super-hydrophilic materials and nano-hydrophobic mesh water-blocking sampling filter, resistant to moisture interference

– Dual-channel air intake system design, automatic on-site cleaning, automatic zero calibration

– Built-in 50+ gases and response factors, precise selection and switching of target gases available

– Historical alarm information accessible, displays STEL, TWA, and concentration curve of measured gas

– Ionization chamber waterproof condensation design, resistant to high-humidity environmental interference, zero false alarms

– Built-in temperature and humidity sensors, real-time temperature and humidity compensation

– mg/m³, μmol/mol gas concentration units interchangeable

– Modular design, intelligent real-time self-diagnosis, easy maintenance

– Infrared remote control and magnetic wand, on-site adjustment and calibration

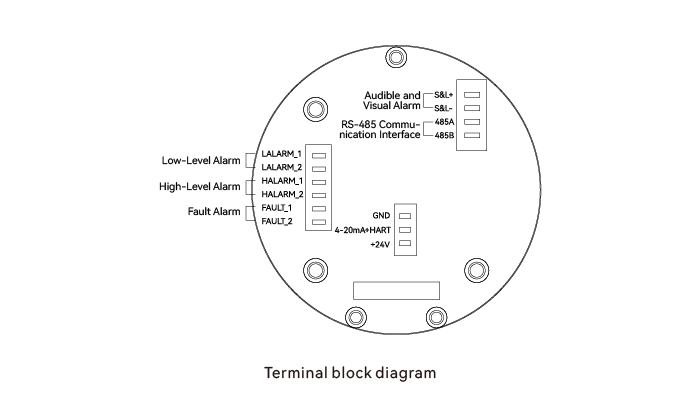

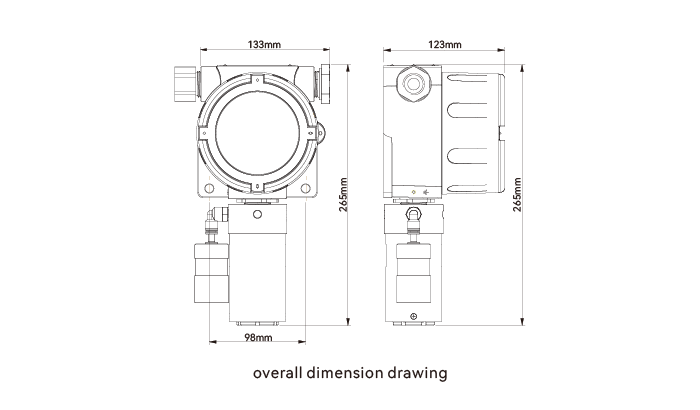

Structure & Dimension Diagram

Detectable Gases

Gas Name	CAS号	分子式	检测范围	分辨率	Response Time
Benzene	71-43-2 -1	C₆H₆	(0~3/5/10/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Toluene	108-88-3 -2	C₇H₈	(0~10/20/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Ethylbenzene	100-41-4 -3	C₈H₁₀	(0~20/40/70)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Acetone	67-64-1 -4	C₃H₆O	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Phenol	108-95-2 -5	C₆H₆O	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Ethyl acetate	141-78-6 -6	C₄H₈O₂	(0~50/100/150)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Styrene	100-42-5 -7	C₈H₈	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Aminomethane (Methylamine)	74-89-5 -8	CH₅N	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Aniline	62-53-3 -9	C₆H₇N	(0~3/5/10)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Xylene	1330-20-7 -10	C₈H₁₀	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Butadiene	106-99-0	C₄H₆	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Carbon disulfide	75-15-0	CS₂	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Biphenyl	92-52-4	C₁₂H₁₀	(0~5/10/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Chlorobenzene	108-90-7	C₆H₅Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Hydrazine	302-01-2	N₂H₄	(0~15/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Vinyl chloride	1975/1/4	C₂H₃Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Methyl mercaptan	74-93-1	CH₃SH	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Nitrobenzene	98-95-3	C₆H₅NO₂	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Toluene diisocyanate	26471-62-5	TDI	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Nonane	111-84-2	C₉H₂₀	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Ethylcyclohexane	1678-91-7	C₈H₁₆	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Butanol	71-36-3	C₄H₁₀O	(0~30/50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Pentanol	71-41-0	C₅H₁₂O	(0~50/80)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Isobutanol	78-83-1	C₄H₁₀O	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Cyclohexanone	108-94-1	C₆H₁₀O	(0~10/20/35)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Jet fuel	8008-20-6	\	(0~100/200)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Kerosene	8008-20-6	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Diesel fuel	68334-30-5	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Gasoline	86290-81-5	\	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)

Paid Components

UV Lamp Cleaning Kit

Sealed Case

Video

Nuoan Gas Detector PID Ion Lamp Replacement Tutorial

Nuoan PID Series Product Overview

Get in Touch

We will provide you with the most professional solution.

Address

301, 1401, 1501, 1601, Building C1, No. 459, Qiaokai Road, Fenghuang Community, Fenghuang Street, Guangming District, Shenzhen, China (518107)

Related Products

The products include gas sensors, gas detectors, gas alarm controllers and monitoring systems, gas analysis and pre-treatment systems，explosion-proof audio-visual alarm, flame detectors, and industrial HSE IoT.

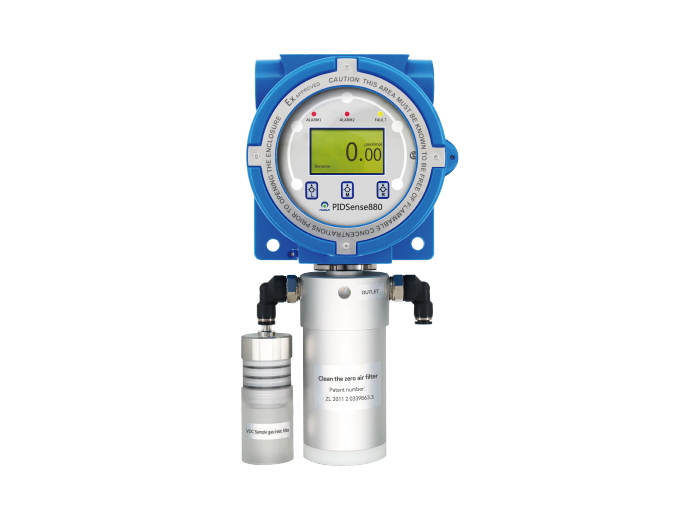

PIDSense880
