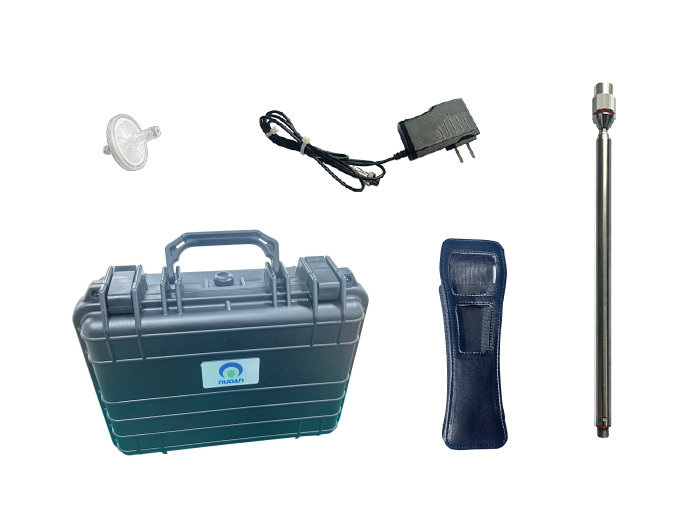

Batch Components

PID便携标定罩

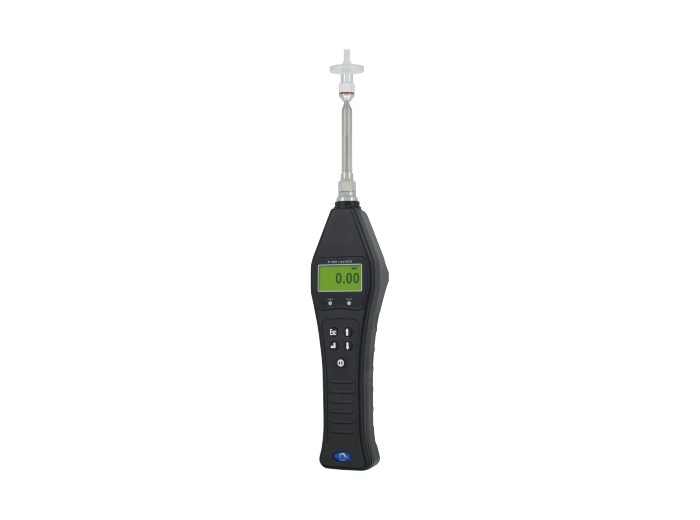

PIDView300

Portable Gas Detector

Examples of Gas Detection：

Benzene
Xylene
Butadiene
Biphenyl
Carbon disulfide

Diesel fuel
Kerosene
etc.

Click for the full list of detectable gases.

Simplified Manual

Download

Quality Assurance & Certifications

Technical Parameter

Technical Specifications	Parameter Details
Gas detection	Volatile organic compounds (VOCs), such as benzene,toluene, nitrobenzene, aniline, naphthalene,ketones, butadiene, ammonia and amines, etc.
Detection principle	Photoionization (PID)
Detection method	Pump suction type
Repeatability	＜2%
Response time	T90≤15S
Display method	Dot matrix LCD display with LED indicator
Alarm method	LED flashing alarm and sound alarm
Pump flow rate	250 mL/min (with blockage alarm)
Source	5000mAh rechargeable intrinsically safe explosion-proof lithium battery pack
Continuous working hours	20 hours (ambient temperature 20°C)
Ambient temperature	-20℃~55℃
Relative humidity	0～99% RH/No condensation
Sensor lifespan	≥3 years
Explosion proof signs	Ex ib lIC T4 Gb
Protection level	IP66
External dimensions	(71×274.9×50.5)mm(WxHxD)
Weight	500g
Probe extension length	80 cm

Product Features

– Vacuum nano-ceramic tube photoionization detection (PID) technology

– Built-in high-performance air pump, rapid response, fast recovery time

– External filtration device, easy maintenance and replacement

– Built-in temperature and humidity sensors, real-time temperature and humidity compensation

– Automatic storage of detection data, downloadable to PC

– Alarm record query available, real-time display of STEL, TWA and other data

– Built-in multiple response factors, convenient for selective detection of specific VOCs

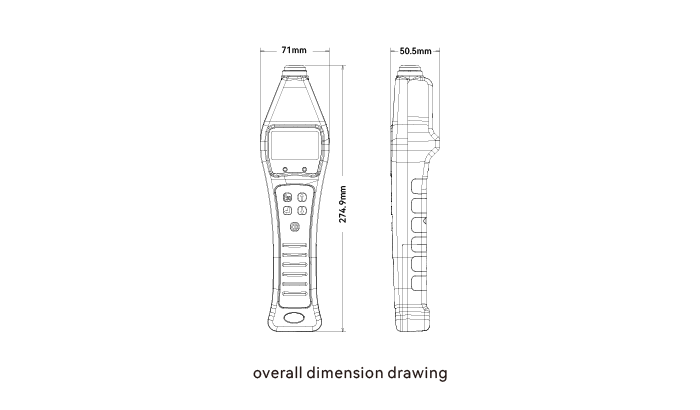

Structure & Dimension Diagram

Detectable Gases

Gas Name	CAS号	分子式	检测范围	分辨率	Response Time
Benzene	71-43-2 -1	C₆H₆	(0~3/5/10/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Toluene	108-88-3 -2	C₇H₈	(0~10/20/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Ethylbenzene	100-41-4 -3	C₈H₁₀	(0~20/40/70)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Acetone	67-64-1 -4	C₃H₆O	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Phenol	108-95-2 -5	C₆H₆O	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Ethyl acetate	141-78-6 -6	C₄H₈O₂	(0~50/100/150)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Styrene	100-42-5 -7	C₈H₈	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Aminomethane (Methylamine)	74-89-5 -8	CH₅N	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Aniline	62-53-3 -9	C₆H₇N	(0~3/5/10)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Xylene	1330-20-7 -10	C₈H₁₀	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Butadiene	106-99-0	C₄H₆	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Carbon disulfide	75-15-0	CS₂	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Biphenyl	92-52-4	C₁₂H₁₀	(0~5/10/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Chlorobenzene	108-90-7	C₆H₅Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Hydrazine	302-01-2	N₂H₄	(0~15/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Vinyl chloride	1975/1/4	C₂H₃Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Methyl mercaptan	74-93-1	CH₃SH	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Nitrobenzene	98-95-3	C₆H₅NO₂	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Toluene diisocyanate	26471-62-5	TDI	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Nonane	111-84-2	C₉H₂₀	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Ethylcyclohexane	1678-91-7	C₈H₁₆	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Butanol	71-36-3	C₄H₁₀O	(0~30/50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Pentanol	71-41-0	C₅H₁₂O	(0~50/80)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Isobutanol	78-83-1	C₄H₁₀O	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Cyclohexanone	108-94-1	C₆H₁₀O	(0~10/20/35)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Jet fuel	8008-20-6	\	(0~100/200)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Kerosene	8008-20-6	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Diesel fuel	68334-30-5	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Gasoline	86290-81-5	\	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
