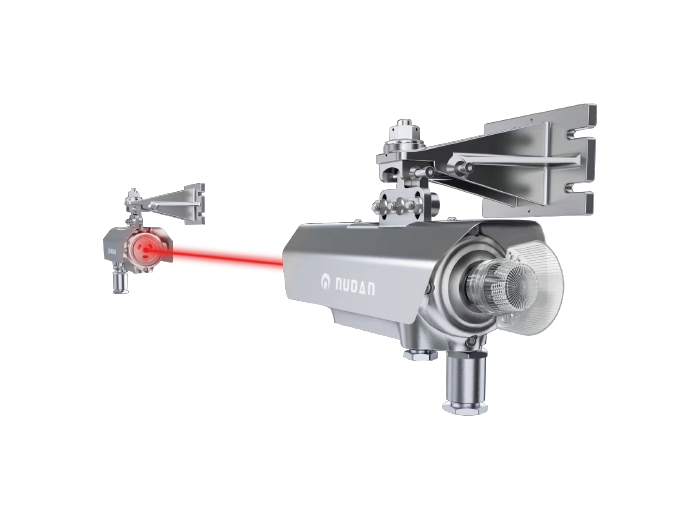

XTQ-TDLScan100

Laser Gas Detector

Examples of Gas Detection：

Methane

Click for the full list of detectable gases.

Simplified Manual

Download

Quality Assurance & Certifications

Technical Parameter

Technical Specifications	Parameter Details
Detection principle	Laser absorption spectroscopy
Gas detection	CH4
Detection method	Detection laser safety: Class I laser, eye-safe
Detection scope	0~50000ppm·m
Resolving power	Detection limit: 50 ppm·m
Accuracy	Detection error: within ±10%
Detection distance	0~150m
Response time	<0.1s
Sensor lifespan	Electrical connection: integrated cable
Display method	Detector:Communication mode: RS-485 Communication rate: 9600 bps
Alarm method	Pan-tilt unit: Communication mode: RS-485 Communication rate: 9600 bps Address code: 1 (factory default)
Alarm value	Camera: Model: Hikvision iDS-2ZMN2507N(B) IP address: 192.168.1.XX (see body label for details) Subnet mask: 255.255.255.0
Adjustment method	Electrical interface: NPT3/4 internal thread
Source	Input voltage: 100V~240V AC, Rated power: 75W (220V AC)
Power dissipation	Detection laser power: ≤10 mW
Ambient temperature	Preset positions: 255
Relative humidity	Preset position accuracy: ≤0.1°
Output signal	Horizontal angle range: 360° continuous Vertical angle range: +90° ~ -90° Horizontal rotation speed: (0.1°~40°)/s smooth variable-speed rotation Vertical rotation speed: (0.1°~30°)/s smooth variable-speed rotation
Shell material	Standard: 304 stainless steel (optional 316L)

Product Features

– High integration: adopts integrated structural design, integrating gas detector, HD camera, and full-range variable-speed pan-tilt unit in one, with no external connecting cables between pan-tilt unit, detector, and camera

– Wide monitoring range: capable of 360° horizontal rotation and ±90° tilt rotation, achieving dead-angle-free monitoring

– Easy access: adopts standard communication protocols, enabling convenient communication with host computer, control systems, and auxiliary equipment

– Safe and reliable: adopts flameproof design, with wide voltage operating range and surge protection function

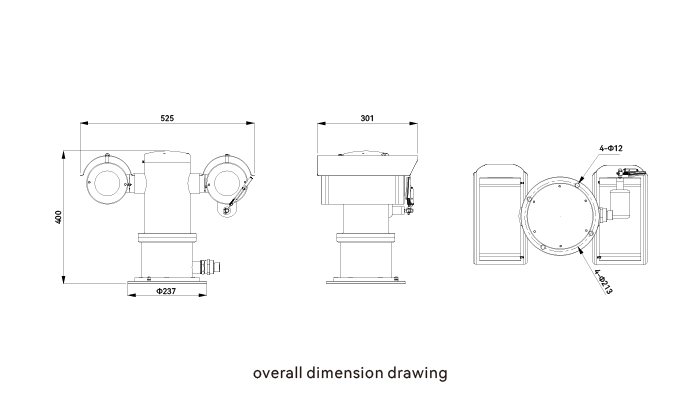

Structure & Dimension Diagram

Detectable Gases

Gas Name	CAS号	分子式	检测气体量程(Detection Range)	检测精度（Detection Accuracy）	响应时间(Response Time)	爆炸下限浓度(V%)
Methane	74-82-8	CH₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	5.00
